Diffraction project datasets IDP02287_4pzl
- Resolution: 2.1 Å
- Space group: P 32
PDB website for 4PZL
PDB validation report for 4PZL
doi:10.18430/m34pzl
Project details

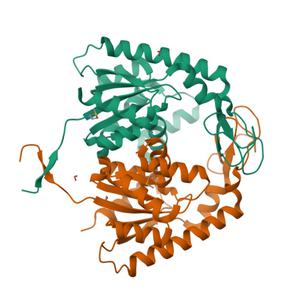

| Title | The crystal structure of adenylate kinase from Francisella tularensis subsp. tularensis SCHU S4 |
| Authors | Tan, K., Zhou, M., Kwon, K., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.19 / 0.24 |
| Unit cell edges [Å] | 65.02 x 65.02 x 214.73 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |
Dataset IDP01423POP_B.####.img details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 256.2 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -20.0 |
| Wavelength [Å] | 0.97938 |
| Experiment Date | 2014-03-10 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
Dataset IDP01423POP_INa.####.img details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 256.2 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -50.0 |
| Wavelength [Å] | 0.97938 |
| Experiment Date | 2014-03-10 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
Dataset IDP01423POP_PKa.####.img details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 256.5 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -50.0 |
| Wavelength [Å] | 0.97924 |
| Experiment Date | 2014-03-10 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
