Diffraction project datasets IDP02103_4npb
- Resolution: 2.147 Å
- Space group: P 21 21 2
PDB website for 4NPB
PDB validation report for 4NPB
doi:10.18430/m34npb
Project details

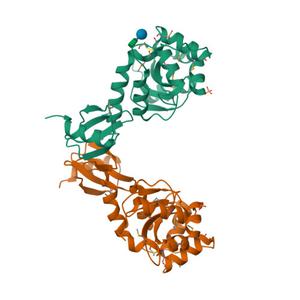

| Title | The crystal structure of thiol:disulfide interchange protein DsbC from Yersinia pestis CO92 |
| Authors | Tan, K., Zhou, M., Kwon, K., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.19 / 0.24 |
| Unit cell edges [Å] | 90.89 x 141.34 x 41.15 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset IDP2103B_PKa.####.img details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 256.6 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -120.0 |
| Kappa / Chi [°] | 0.0001 |
| Phi [°] | -0.0033 |
| Wavelength [Å] | 0.97899 |
| Experiment Date | 2012-12-07 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
