Diffraction project datasets IDP02095_3igx
- Method: SAD
- Resolution: 1.85 Å
- Space group: P 21 21 21
PDB website for 3IGX
PDB validation report for 3IGX
doi:10.18430/m33igx
Project details

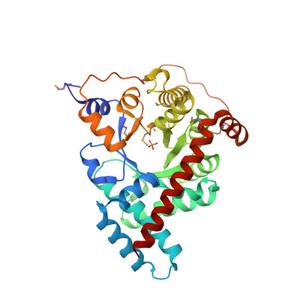

| Title | 1.85 Angstrom Resolution Crystal Structure of Transaldolase B (talA) from Francisella tularensis. |
| Authors | Minasov, G., Wawrzak, Z., Skarina, T., Gordon, E., Peterson, S.N., Savchenko, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.15 / 0.19 |
| Unit cell edges [Å] | 56.49 x 75.86 x 164.77 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset idp02095-2_A.### details
| Number of frames | 250 (1 - 250) |
| Distance [mm] | 260.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 80.0 |
| Wavelength [Å] | 0.97921 |
| Experiment Date | 2009-07-24 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
Dataset idp02095-2_B.### details
| Number of frames | 250 (1 - 250) |
| Distance [mm] | 260.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 260.0 |
| Wavelength [Å] | 0.97921 |
| Experiment Date | 2009-07-24 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
