Diffraction project datasets IDP02082_5ujw
- Resolution: 2.65 Å
- Space group: P 1 2 1
Uniprot website for Q5NII7
PDB website for 5UJW
PDB validation report for 5UJW
doi:10.18430/m35ujw
Project details

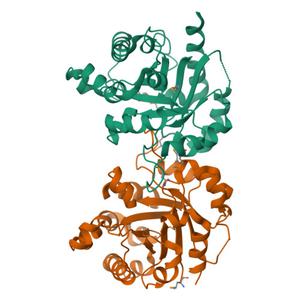

| Title | Crystal structure of triosephosphate isomerase from Francisella tularensis subsp. tularensis SCHU S4 |
| Authors | Chang, C., Maltseva, N., Kim, Y., Shatsman, S., Joachimiak, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.22 / 0.25 |
| Unit cell edges [Å] | 76.72 x 136.97 x 84.60 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

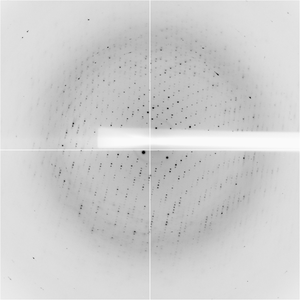

Dataset PEGsIIF1.####.img details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -110.0 |
| Wavelength [Å] | 0.97904 |
| Experiment Date | 2013-12-12 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
