Diffraction project datasets IDP02080_4iqe
- Resolution: 2.5 Å
- Space group: P 32 2 1
PDB website for 4IQE
doi:10.18430/M34IQE
Project details

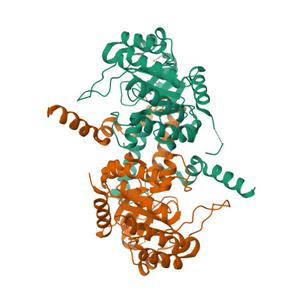

| Title | Crystal Structure of Carboxyvinyl-Carboxyphosphonate Phosphorylmutase from Bacillus anthracis str. Ames Ancestor |
| Authors | Kim, Y., Maltseva, N., Kwon, K., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.16 / 0.18 |
| Unit cell edges [Å] | 106.17 x 106.17 x 113.45 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |
Dataset in63g2-peak1.####.img details
| Number of frames | 210 (1 - 210) |
| Distance [mm] | 260.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -90.0 |
| Kappa / Chi [°] | 0.0003 |
| Phi [°] | -0.0009 |
| Wavelength [Å] | 0.97951 |
| Experiment Date | 2009-04-06 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
