Diffraction project datasets IDP02080_3ih1
- Resolution: 2.0 Å
- Space group: P 32 2 1
PDB website for 3IH1
PDB validation report for 3IH1
doi:10.18430/m33ih1
Project details

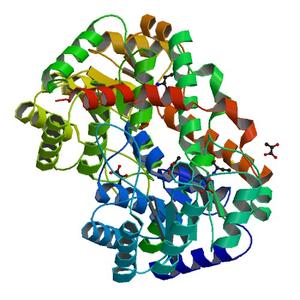

| Title | Crystal Structure of Carboxyvinyl-Carboxyphosphonate Phosphorylmutase from Bacillus anthracis |
| Authors | Y.Kim,N.Maltseva,K.Kwon,W.F.Anderson,A.Joachimiak,Center For Structural Genomics Of Infectious Diseases (Csgid) |
| R / Rfree | 0.15 / 0.19 |
| Unit cell edges [Å] | 105.54 x 105.54 x 114.68 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |
Dataset h4paeg-peak.####.img details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 310.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -100.0 |
| Kappa / Chi [°] | 0.0003 |
| Phi [°] | -0.007 |
| Wavelength [Å] | 0.97931 |
| Experiment Date | 2009-04-13 |
