Diffraction project datasets IDP01948_4k2h

  • Method: Molecular Replacement
  • Resolution: 2.2 Å
  • Space group: C 1 2 1
Download all images (2.5 GB)

PDB website for 4K2H

doi:10.18430/M3988H

Project details

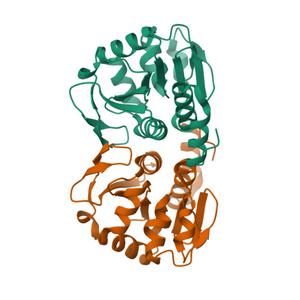

Title Crystal structure of C103A mutant of DJ-1 superfamily protein STM1931 from Salmonella typhimurium
Authors Shumilin, I.A., Niedzialkowska, E., Domagalski, M.J., Stam, J., Anderson, W.F., Minor, W., Center for Structural Genomics of Infectious Diseases (CSGID)
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 179.66 x 113.75 x 175.71
Unit cell angles [°] 90.0, 109.3, 90.0

Dataset IDP01948_It-103_1_####.img details

Number of frames 475 (1 - 475)
Distance [mm] 260.0
Oscillation width [°] 0.40
Omega [°] -160.0
Kappa / Chi [°] 0.0001
Phi [°] -0.0033
Wavelength [Å] 0.97860
Experiment Date 2012-11-11
Equipment 19-ID at APS (Advanced Photon Source)
