Diffraction project datasets IDP01943_4n3o
- Method: SAD
- Resolution: 2.4 Å
- Space group: C 1 2 1
PDB website for 4N3O
PDB validation report for 4N3O
doi:10.18430/m34n3o
Project details

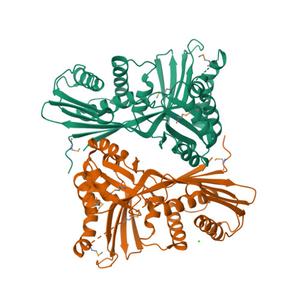

| Title | 2.4 Angstrom Resolution Crystal Structure of Putative Sugar Kinase from Campylobacter jejuni. |
| Authors | Minasov, G., Wawrzak, Z., Gordon, E., Onopriyenko, O., Grimshaw, S., Kwon, K., Savchenko, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.23 |
| Unit cell edges [Å] | 118.61 x 85.80 x 77.95 |
| Unit cell angles [°] | 90.0, 122.4, 90.0 |
Dataset idp01943-n1_A.### details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2009-07-31 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
Dataset idp01943-n1_B.### details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 180.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2009-07-31 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
