Diffraction project datasets IDP01842_4GFP
- Resolution: 2.7 Å
- Space group: P 64
Uniprot website for Q83E11
PDB website for 4GFP
PDB validation report for 4GFP
doi:10.18430/m34gfp
Project details

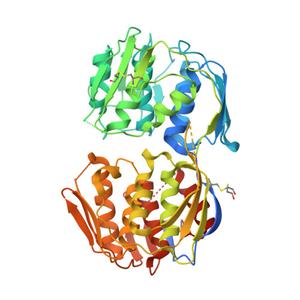

| Title | 2.7 Angstrom resolution structure of 3-phosphoshikimate 1-carboxyvinyltransferase (AroA) from Coxiella burnetii in a second conformational state |
| Authors | Light, S.H., Minasov, G., Krishna, S.N., Shuvalova, L., Papazisi, L., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.23 / 0.26 |
| Unit cell edges [Å] | 125.43 x 125.43 x 108.26 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

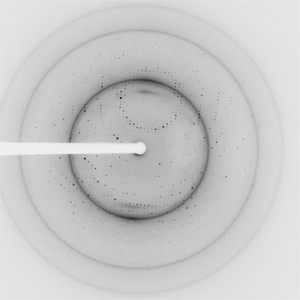

Dataset idp00816b.### details
| Number of frames | 242 (119 - 360) |
| Distance [mm] | 190.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 166.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2008-10-02 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |

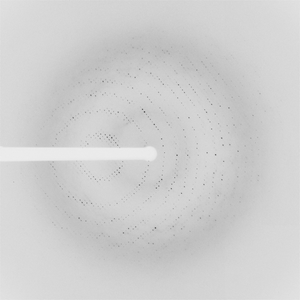

Dataset idp01842sm_a.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 320.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 100.0 |
| Wavelength [Å] | 1.07805 |
| Experiment Date | 2012-03-16 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
