Diffraction project datasets IDP01842_4EGR
- Resolution: 2.5 Å
- Space group: C 1 2 1
PDB website for 4EGR
doi:10.18430/m34egr
Project details

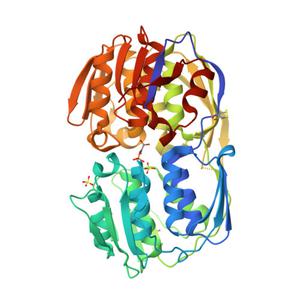

| Title | 2.50 angstrom resolution structure of 3-phosphoshikimate 1-carboxyvinyltransferase (AroA) from Coxiella burnetii in complex with phosphoenolpyruvate |
| Authors | Krishna, S.N., Light, S.H., Minasov, G., Shuvalova, L., Kwon, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 162.36 x 94.05 x 230.51 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

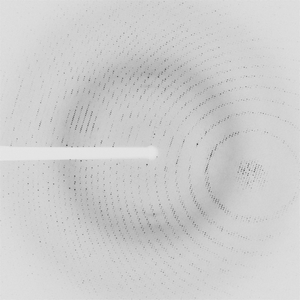

Dataset idp01842s.### details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 147.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2011-12-19 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
