Diffraction project datasets IDP01842_3ROI
- Resolution: 2.2 Å
- Space group: P 21 21 21
Uniprot website for Q83E11
PDB website for 3ROI
PDB validation report for 3ROI
doi:10.18430/m33roi
Project details
| Title | 2.20 Angstrom resolution structure of 3-phosphoshikimate 1-carboxyvinyltransferase (AroA) from Coxiella burnetii |
| Authors | Light, S.H., Minasov, G., Krishna, S.N., Halavaty, A.S., Shuvalova, L., Papazisi, L., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.19 / 0.24 |
| Unit cell edges [Å] | 42.16 x 116.41 x 160.75 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

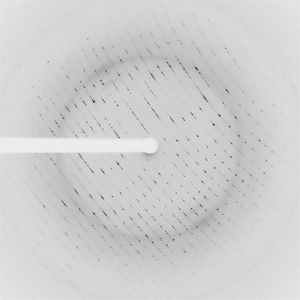

Dataset idp01842d.### details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 215.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2011-02-17 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
