Diffraction project datasets IDP01813_4neg
- Resolution: 2.201 Å
- Space group: C 1 2 1
PDB website for 4NEG
PDB validation report for 4NEG
doi:10.18430/m34neg
Project details

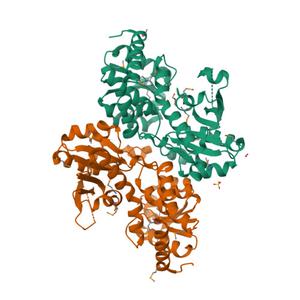

| Title | The crystal structure of tryptophan synthase subunit beta from Bacillus anthracis str. 'Ames Ancestor' |
| Authors | Tan, K., Zhang, R., Zhou, M., Kwon, K., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 200.76 x 49.04 x 76.49 |
| Unit cell angles [°] | 90.0, 99.4, 90.0 |
Dataset IDP1813_INF.####.img details
| Number of frames | 205 (1 - 205) |
| Distance [mm] | 300.4 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -120.0 |
| Kappa / Chi [°] | 0.0003 |
| Wavelength [Å] | 0.97945 |
| Experiment Date | 2009-06-17 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
Dataset IDP1813_PK.####.img details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -120.0 |
| Kappa / Chi [°] | 0.0003 |
| Wavelength [Å] | 0.97935 |
| Experiment Date | 2009-06-17 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
