Diffraction project datasets IDP01791_3udu
- Method: MIR
- Resolution: 1.85 Å
- Space group: P 1
PDB website for 3UDU
PDB validation report for 3UDU
doi:10.18430/M33UDU
Project details

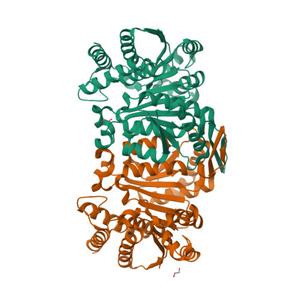

| Title | Crystal structure of putative 3-isopropylmalate dehydrogenase from Campylobacter jejuni |
| Authors | Tkaczuk, K.L., Chruszcz, M., Grimshaw, S., Onopriyenko, O., Savchenko, A., Anderson, W.F., Minor, W., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.20 / 0.24 |
| Unit cell edges [Å] | 74.72 x 83.17 x 111.20 |
| Unit cell angles [°] | 94.2, 90.1, 89.6 |
Dataset IDP01791_n1_1_####.img details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -119.0 |
| Kappa / Chi [°] | 0.0001 |
| Phi [°] | -0.0108 |
| Wavelength [Å] | 0.97929 |
| Experiment Date | 2010-03-19 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
Dataset IDP01791_n1_2_####.img details
| Number of frames | 230 (1 - 230) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -119.0 |
| Kappa / Chi [°] | 0.0002 |
| Phi [°] | 49.9945 |
| Wavelength [Å] | 0.97929 |
| Experiment Date | 2010-03-19 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
