Diffraction project datasets IDP01791_3udo
- Method: SAD
- Resolution: 2.3 Å
- Space group: P 43 21 2
PDB website for 3UDO
doi:10.18430/M3GW20
Project details

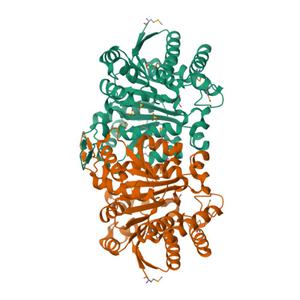

| Title | Crystal structure of putative isopropylamlate dehydrogenase from Campylobacter jejuni |
| Authors | Tkaczuk, K.L., Chruszcz, M., Blus, B.J., Onopriyenko, O., Grimshaw, S., Savchenko, A., Anderson, W.F., Minor, W., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 74.79 x 74.79 x 163.79 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset IDP01791_N1-new_1_####.img details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 270.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -90.0 |
| Kappa / Chi [°] | 0.0003 |
| Phi [°] | -0.0108 |
| Wavelength [Å] | 0.97721 |
| Experiment Date | 2011-07-09 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
