Diffraction project datasets IDP01765_4m0g
- Resolution: 2.152 Å
- Space group: P 41 21 2
PDB website for 4M0G
PDB validation report for 4M0G
doi:10.18430/m34m0g
Project details

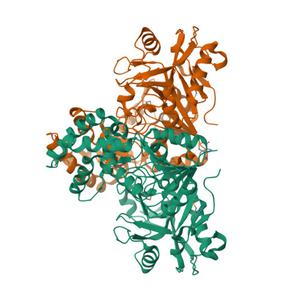

| Title | The crystal structure of an adenylosuccinate synthetase from Bacillus anthracis str. Ames Ancestor. |
| Authors | Tan, K., Zhou, M., Zhang, R., Kwon, K., Anderson, W.F., Joachimiak, A., Midwest Center for Structural Genomics (MCSG), Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.19 / 0.24 |
| Unit cell edges [Å] | 76.50 x 76.50 x 342.80 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset IDP1765_INF.####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 319.9 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -90.0 |
| Kappa / Chi [°] | 44.9997 |
| Phi [°] | -0.007 |
| Wavelength [Å] | 0.97957 |
| Experiment Date | 2009-04-06 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
Dataset IDP1765_PK.####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 320.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -90.0 |
| Kappa / Chi [°] | 44.9997 |
| Phi [°] | -0.007 |
| Wavelength [Å] | 0.97940 |
| Experiment Date | 2009-04-06 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
