Diffraction project datasets IDP01739_3khy

  • Method: SAD
  • Resolution: 1.98 Å
  • Space group: P 21 21 21
Download all images (3.3 GB)

PDB website for 3KHY

doi:10.18430/M33KHY

Project details

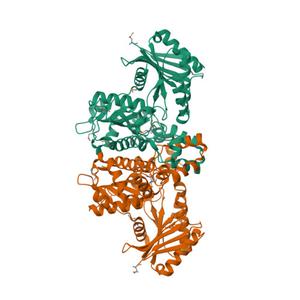

Title Crystal Structure of a propionate kinase from Francisella tularensis subsp. tularensis SCHU S4
Authors Brunzelle, J.S., Sharma, S.S., Skarina, T., Wang, Y., Savchenko, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID)
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 67.08 x 87.13 x 149.66
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset idp01739-2_A.### details

Number of frames 29 (130 - 158)
Distance [mm] 210.0
Oscillation width [°] 0.75
Phi [°] 186.75
Wavelength [nm] 0.97856
Experiment Date 2009-10-23
Equipment 21-ID-G at APS (Advanced Photon Source)

Dataset idp01739-2_A.### details

Number of frames 42 (160 - 201)
Distance [mm] 210.0
Oscillation width [°] 0.75
Phi [°] 209.25
Wavelength [nm] 0.97856
Experiment Date 2009-10-23
Equipment 21-ID-G at APS (Advanced Photon Source)

Dataset idp01739-2_A.### details

Number of frames 24 (203 - 226)
Distance [mm] 210.0
Oscillation width [°] 0.75
Phi [°] 241.5
Wavelength [nm] 0.97856
Experiment Date 2009-10-23
Equipment 21-ID-G at APS (Advanced Photon Source)

Dataset idp01739-2_B.### details

Number of frames 240 (1 - 240)
Distance [mm] 210.0
Oscillation width [°] 0.75
Phi [°] 270.0
Wavelength [nm] 0.97856
Experiment Date 2009-10-23
Equipment 21-ID-G at APS (Advanced Photon Source)
