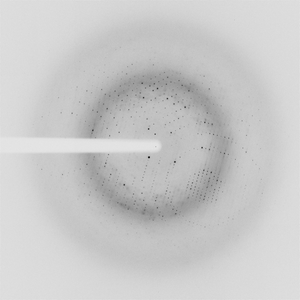

Diffraction project datasets IDP01616_5UG4

  • Resolution: 2.15 Å
  • Space group: I 2 2 2
Download all images (4.3 GB)

Uniprot website for Q9KL03
PDB website for 5UG4
PDB validation report for 5UG4

doi:10.18430/m35ug4

Project details

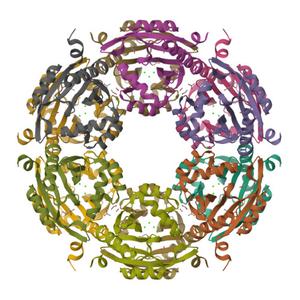

Title Structure of spermidine N-acetyltransferase SpeG from Vibrio cholerae
Authors Filippova, E.V., Minasov, G., Shuvalova, L., Kiryukhina, O., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID)
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 71.88 x 134.64 x 137.35
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset idp07555cut-a_1_2_4.### details

Number of frames 46 (19 - 64)
Distance [mm] 230.0
Oscillation width [°] 0.60
Phi [°] 256.6
Wavelength [Å] 0.97856
Experiment Date 2017-11-02
Equipment 21-ID-G at APS (Advanced Photon Source)

Dataset idp07555cut-a_1_2_4.### details

Number of frames 33 (82 - 114)
Distance [mm] 230.0
Oscillation width [°] 0.60
Phi [°] 256.6
Wavelength [Å] 0.97856
Experiment Date 2017-11-02
Equipment 21-ID-G at APS (Advanced Photon Source)

Dataset idp07555cut-a_1_2_4.### details

Number of frames 46 (116 - 161)
Distance [mm] 230.0
Oscillation width [°] 0.60
Phi [°] 256.6
Wavelength [Å] 0.97856
Experiment Date 2017-11-02
Equipment 21-ID-G at APS (Advanced Photon Source)

Dataset idp07555cut-a_1_2_4.### details

Number of frames 74 (187 - 260)
Distance [mm] 230.0
Oscillation width [°] 0.60
Phi [°] 256.6
Wavelength [Å] 0.97856
Experiment Date 2017-11-02
Equipment 21-ID-G at APS (Advanced Photon Source)

Dataset idp07555cut-a_1_2_4.### details

Number of frames 23 (262 - 284)
Distance [mm] 230.0
Oscillation width [°] 0.60
Phi [°] 256.6
Wavelength [Å] 0.97856
Experiment Date 2017-11-02
Equipment 21-ID-G at APS (Advanced Photon Source)

Dataset idp07555cut-a_1_2_4.### details

Number of frames 25 (286 - 310)
Distance [mm] 230.0
Oscillation width [°] 0.60
Phi [°] 256.6
Wavelength [Å] 0.97856
Experiment Date 2017-11-02
Equipment 21-ID-G at APS (Advanced Photon Source)

Dataset idp07555cut-a_1_2_4.### details

Number of frames 39 (312 - 350)
Distance [mm] 230.0
Oscillation width [°] 0.60
Phi [°] 256.6
Wavelength [Å] 0.97856
Experiment Date 2017-11-02
Equipment 21-ID-G at APS (Advanced Photon Source)
