Diffraction project datasets IDP01611_3tau

  • Method: SAD
  • Resolution: 2.05 Å
  • Space group: P 21 21 21
Download all images (3.3 GB)

PDB website for 3TAU

doi:10.18430/M33TAU

Project details

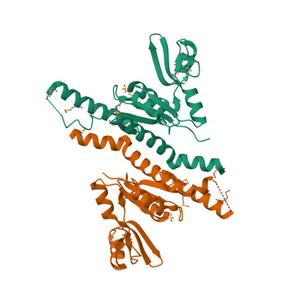

Title Crystal Structure of a Putative Guanylate Monophosphaste Kinase from Listeria monocytogenes EGD-e
Authors Brunzelle, J.S., Wawrzak, Z., Onopriyenko, O., Kwok, J., Anderson, W.F., Savchenko, A.
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 58.73 x 65.32 x 107.32
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset idp01611-3_A.### details

Number of frames 360 (1 - 360)
Distance [mm] 180.0
Oscillation width [°] 0.50
Phi [°] 35.0
Wavelength [Å] 0.97872
Experiment Date 2009-11-13
Equipment 21-ID-F at APS (Advanced Photon Source)

Dataset idp01611-3_B.### details

Number of frames 360 (1 - 360)
Distance [mm] 180.0
Oscillation width [°] 0.50
Phi [°] 215.0
Wavelength [Å] 0.97872
Experiment Date 2009-11-13
Equipment 21-ID-F at APS (Advanced Photon Source)
