Diffraction project datasets IDP01493_5v0p
- Resolution: 2.16 Å
- Space group: P 1 21 1
PDB website for 5V0P
PDB validation report for 5V0P
doi:10.18430/m35v0p
Project details

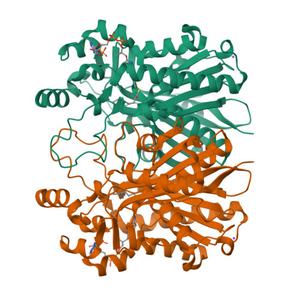

| Title | Crystal Structure of Beta-ketoacyl-ACP synthase III-2 (FabH2) (C113A) from Vibrio Cholerae co-crystallized with octanoyl-CoA |
| Authors | Hou, J., Zheng, H., Cooper, D.R., Grabowski, M., Anderson, W.F., Minor, W., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 85.32 x 61.89 x 75.73 |
| Unit cell angles [°] | 90.0, 93.2, 90.0 |

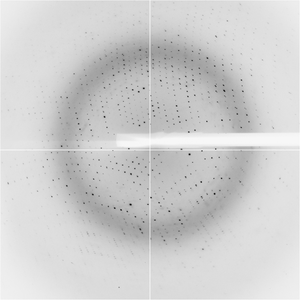

Dataset IDP01493_MN3-B3_1a_1_####.img details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 160.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -55.0 |
| Wavelength [Å] | 1.28616 |
| Experiment Date | 2015-04-19 |
| Equipment | 19-BM at APS (Advanced Photon Source) |

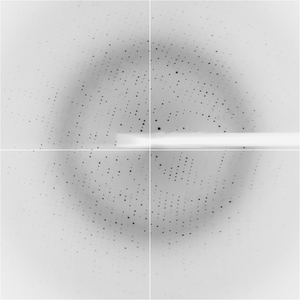

Dataset IDP01493_MN3-B3_1a_2_####.img details
| Number of frames | 50 (1 - 50) |
| Distance [mm] | 160.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -105.0 |
| Wavelength [Å] | 1.28616 |
| Experiment Date | 2015-04-19 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
