Diffraction project datasets IDP01461_3qmn
- Resolution: 1.85 Å
- Space group: P 1 21 1
PDB website for 3QMN
PDB validation report for 3QMN
doi:10.18430/m33qmn
Project details

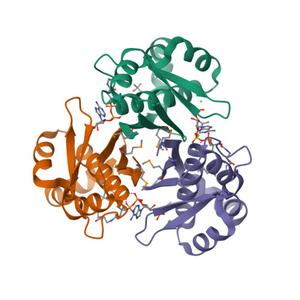

| Title | Crystal Structure of 4'-Phosphopantetheinyl Transferase AcpS from Vibrio cholerae O1 biovar eltor |
| Authors | Kim, Y., Halavaty, A.S., Zhou, M., Kwon, K., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.16 / 0.19 |
| Unit cell edges [Å] | 94.55 x 139.04 x 138.32 |
| Unit cell angles [°] | 90.0, 93.7, 90.0 |
Dataset 53-a4-2-1-peak1.####.img details
| Number of frames | 220 (1 - 220) |
| Distance [mm] | 260.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -110.0 |
| Kappa / Chi [°] | 0.0002 |
| Phi [°] | -0.007 |
| Wavelength [Å] | 0.97937 |
| Experiment Date | 2009-02-28 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
