Diffraction project datasets IDP01439_4jrh
- Method: Molecular Replacement
- Resolution: 2.2 Å
- Space group: P 43
PDB website for 4JRH
PDB validation report for 4JRH
doi:10.18430/m34jrh
Project details

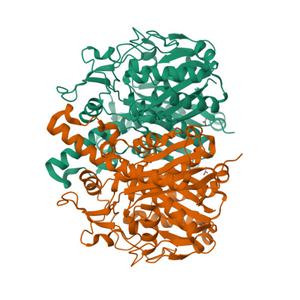

| Title | Crystal structure of beta-ketoacyl-ACP synthase II (FabF) from Vibrio Cholerae (space group P43) at 2.2 Angstrom |
| Authors | Hou, J., Chruszcz, M., Shabalin, I.G., Zheng, H., Cooper, D.R., Anderson, W.F., Minor, W., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.20 |
| Unit cell edges [Å] | 124.55 x 124.55 x 64.39 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset IDP01439_VC2019-30_1_####.img details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 320.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -100.0 |
| Kappa / Chi [°] | -0.0003 |
| Phi [°] | -0.0176 |
| Wavelength [Å] | 0.97926 |
| Experiment Date | 2012-06-24 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
