Diffraction project datasets IDP01420_6BXG
- Resolution: 1.45 Å
- Space group: P 65
Uniprot website for Q9KRY7
PDB website for 6BXG
PDB validation report for 6BXG
doi:10.18430/m36bxg
Project details

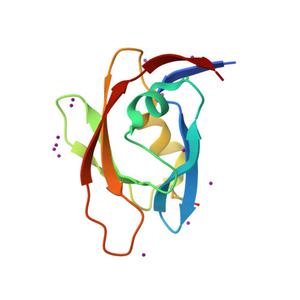

| Title | 1.45 Angstrom Resolution Crystal Structure of PDZ domain of Carboxy-Terminal Protease from Vibrio cholerae in Complex with Peptide. |
| Authors | Minasov, G., Shuvalova, L., Filippova, E.V., Kiryukhina, O., Grimshaw, S., Kwon, K., Anderson, W.F., Satchell, K.J.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.13 / 0.18 |
| Unit cell edges [Å] | 35.58 x 35.58 x 118.39 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

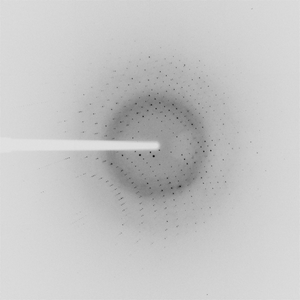

Dataset idp01420-5-a_2_1_3.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 160.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 40.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2017-08-08 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |

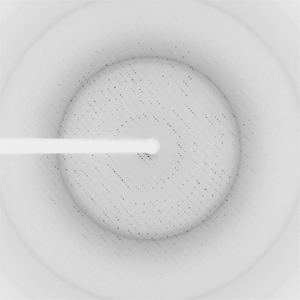

Dataset idp02383b.### details
| Number of frames | 250 (1 - 250) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 118.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2010-07-19 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
