Diffraction project datasets IDP01358_3qz3
- Resolution: 2.099 Å
- Space group: I 4 2 2
PDB website for 3QZ3
PDB validation report for 3QZ3
doi:10.18430/m33qz3
Project details

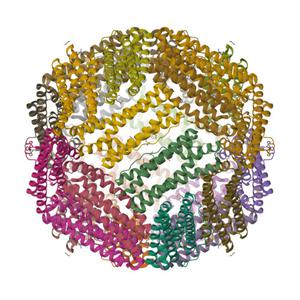

| Title | The crystal structure of ferritin from Vibrio cholerae O1 biovar El Tor str. N16961 |
| Authors | Tan, K., Mulligan, R., Hasseman, J., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 144.96 x 144.96 x 136.92 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset IDP_ro_C6_2.####.img details
| Number of frames | 92 (1 - 92) |
| Distance [mm] | 274.4 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -50.0 |
| Kappa / Chi [°] | 0.0001 |
| Phi [°] | -0.0178 |
| Wavelength [Å] | 0.97918 |
| Experiment Date | 2011-03-02 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
