Diffraction project datasets IDP01325_3eer
- Method: SAD
- Resolution: 1.45 Å
- Space group: I 21 21 21
PDB website for 3EER
PDB validation report for 3EER
doi:10.18430/m33eer
Project details

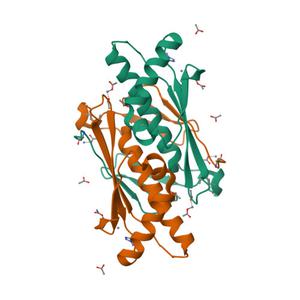

| Title | High resolution structure of putative organic hydroperoxide resistance protein from Vibrio cholerae O1 biovar eltor str. N16961 |
| Authors | Nocek, B., Maltseva, N., Kwon, K., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.14 / 0.16 |
| Unit cell edges [Å] | 59.65 x 71.13 x 71.63 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset peak-1.####.img details
| Number of frames | 179 (2 - 180) |
| Distance [mm] | 219.8 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -89.0 |
| Kappa / Chi [°] | 0.0003 |
| Phi [°] | -0.0018 |
| Wavelength [Å] | 0.97940 |
| Experiment Date | 2008-08-05 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
Dataset peak-2.####.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 181.6 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -90.0 |
| Kappa / Chi [°] | 0.0003 |
| Phi [°] | -0.0018 |
| Wavelength [Å] | 0.97940 |
| Experiment Date | 2008-08-06 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
