Diffraction project datasets IDP01194_6BI4
- Resolution: 2.91 Å
- Space group: I 4 2 2
Uniprot website for Q81TP0
PDB website for 6BI4
PDB validation report for 6BI4
doi:10.18430/m36bi4
Project details

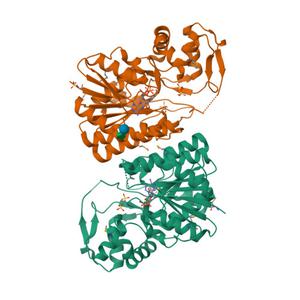

| Title | 2.9 Angstrom Resolution Crystal Structure of dTDP-Glucose 4,6-dehydratase (rfbB) from Bacillus anthracis str. Ames in Complex with NAD. |
| Authors | Halavaty, A.S., Kuhn, M., Shuvalova, L., Minasov, G., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.20 |
| Unit cell edges [Å] | 165.56 x 165.56 x 292.12 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

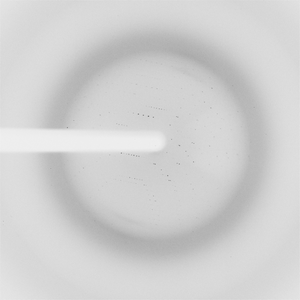

Dataset RcsB-DNA18-a_1_2_1.### details
| Number of frames | 280 (1 - 280) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.75 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2016-06-16 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
