Diffraction project datasets IDP01178_4qm1
- Resolution: 2.7964 Å
- Space group: P 1 21 1
PDB website for 4QM1
PDB validation report for 4QM1
doi:10.18430/m34qm1
Project details

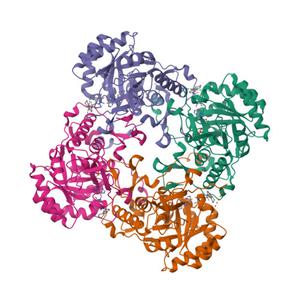

| Title | Crystal Structure of the Inosine 5'-monophosphate Dehydrogenase with an Internal Deletion of the CBS Domain from Bacillus anthracis str. Ames complexed with inhibitor D67 |
| Authors | Kim, Y., Makowska-Grzyska, M., Gu, M., Mandapati, K., Gollapalli, D., Gorla, S.K., Zhang, M., Hedstrom, L., Anderson, W.F., Joachimiak, A., CSGID, Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.19 / 0.25 |
| Unit cell edges [Å] | 83.13 x 101.33 x 87.27 |
| Unit cell angles [°] | 90.0, 109.6, 90.0 |
Dataset impd67-inE11g.####.img details
| Number of frames | 161 (1 - 161) |
| Distance [mm] | 380.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -80.0 |
| Kappa / Chi [°] | -0.0003 |
| Phi [°] | -0.0176 |
| Wavelength [Å] | 0.97926 |
| Experiment Date | 2012-06-18 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
