Diffraction project datasets IDP01178_4myx
- Resolution: 2.701 Å
- Space group: P 1
PDB website for 4MYX
PDB validation report for 4MYX
doi:10.18430/m34myx
Project details

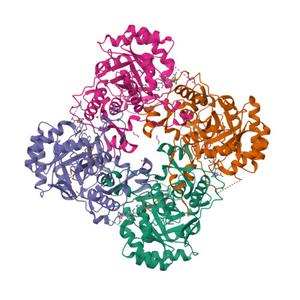

| Title | Crystal Structure of the Inosine 5'-monophosphate Dehydrogenase, with a Internal Deletion of CBS Domain from Bacillus anthracis str. Ame complexed with P32 |
| Authors | Kim, Y., Makowska-Grzyska, M., Gu, M., Gorla, S.K., Hedstrom, L., Anderson, W.F., Joachimiak, A., CSGID, Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.22 / 0.26 |
| Unit cell edges [Å] | 85.37 x 89.82 x 104.50 |
| Unit cell angles [°] | 81.4, 90.4, 83.5 |
Dataset inF3e-2.####.img details
| Number of frames | 220 (1 - 220) |
| Distance [mm] | 370.1 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -110.0 |
| Kappa / Chi [°] | -0.0003 |
| Phi [°] | -0.0176 |
| Wavelength [Å] | 0.97921 |
| Experiment Date | 2012-04-23 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
