Diffraction project datasets IDP01178_4mya

Project details

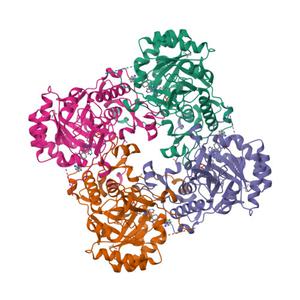

Title Crystal Structure of the Inosine 5'-monophosphate Dehydrogenase with an Internal Deletion of the CBS Domain from Bacillus anthracis str. Ames complexed with inhibitor A110
Authors Kim, Y., Makowska-Grzyska, M., Gu, M., Anderson, W.F., Joachimiak, A.
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 110.85 x 110.85 x 56.26
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset a110-m4a3g.####.img details

Number of frames 120 (1 - 120)
Distance [mm] 320.0
Oscillation width [°] 1.00
Omega [°] -100.0
Kappa / Chi [°] -0.0003
Phi [°] -0.0176
Wavelength [Å] 0.97921
Experiment Date 2012-04-15
Equipment 19-ID at APS (Advanced Photon Source)
