Diffraction project datasets IDP01178_4my8
- Resolution: 2.2924 Å
- Space group: P 1 2 1
PDB website for 4MY8
PDB validation report for 4MY8
doi:10.18430/m34my8
Project details

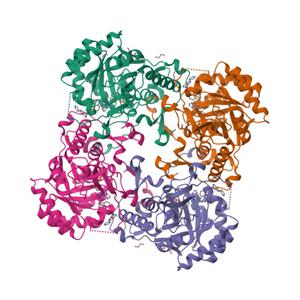

| Title | Crystal Structure of the Inosine 5'-monophosphate Dehydrogenase with an Internal Deletion of the CBS Domain from Bacillus anthracis str. Ames complexed with inhibitor Q21 |
| Authors | Kim, Y., Makowska-Grzyska, M., Gu, M., Gorla, S.K., Kavitha, M., Cuny, G., Hedstrom, L., Anderson, W.F., Joachimiak, A., CSGID, Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.23 |
| Unit cell edges [Å] | 111.43 x 56.23 x 111.40 |
| Unit cell angles [°] | 90.0, 89.8, 90.0 |
Dataset m4a5g.####.img details
| Number of frames | 161 (1 - 161) |
| Distance [mm] | 360.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -110.0 |
| Kappa / Chi [°] | -0.0003 |
| Phi [°] | -0.0176 |
| Wavelength [Å] | 0.97921 |
| Experiment Date | 2012-04-22 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
