Diffraction project datasets IDP01178_3usb
- Resolution: 2.38 Å
- Space group: I 4
PDB website for 3USB
doi:10.18430/M33USB
Project details

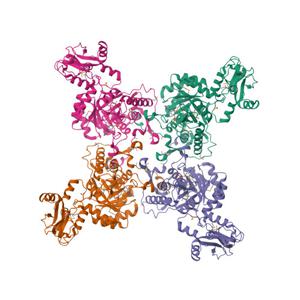

| Title | Crystal Structure of Bacillus anthracis Inosine Monophosphate Dehydrogenase in the complex with IMP |
| Authors | Makowska-Grzyska, M., Kim, Y., Wu, R., Wilton, R., Gollapalli, D.R., Wang, X.K., Zhang, R., Jedrzejczak, R., Mack, J.C., Maltseva, N., Mulligan, R., Binkowski, T.A., Gornicki, P., Kuhn, M.L., Anderson, W.F., Hedstrom, L., Joachimiak, A. |
| R / Rfree | 0.17 / 0.20 |
| Unit cell edges [Å] | 122.52 x 122.52 x 140.90 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset PG172IMP_peak.####.img details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -120.0 |
| Kappa / Chi [°] | 0.0002 |
| Phi [°] | 0.0053 |
| Wavelength [Å] | 0.97945 |
| Experiment Date | 2005-07-06 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
