Diffraction project datasets IDP01143_3r8y

  • Method: Molecular Replacement
  • Resolution: 1.7 Å
  • Space group: P 1
Download all images (8.3 GB)

PDB website for 3R8Y

doi:10.18430/M33R8Y

Project details

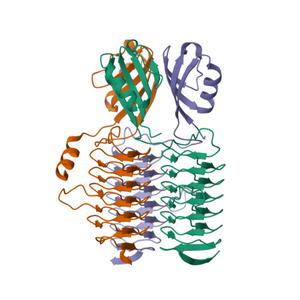

Title Structure of the Bacillus anthracis tetrahydropicolinate succinyltransferase
Authors Anderson, S.M., Wawrzak, Z., Onopriyenko, O., Peterson, S.N., Anderson, W.F., Savchenko, A., Center for Structural Genomics of Infectious Diseases (CSGID)
R / Rfree 0.19 / 0.22
Unit cell edges [Å] 52.42 x 52.22 x 134.55
Unit cell angles [°] 97.4, 93.2, 115.7

Dataset IDP01143-2.### details

Number of frames 300 (1 - 300)
Distance [mm] 240.0
Oscillation width [°] 0.60
Wavelength [nm] 0.97856
Experiment Date 2011-02-17
Equipment 21-ID-G at APS (Advanced Photon Source)

Dataset IDP01143-2k.### details

Number of frames 300 (1 - 300)
Distance [mm] 225.0
Oscillation width [°] 0.60
Wavelength [nm] 0.97856
Experiment Date 2011-02-19
Equipment 21-ID-G at APS (Advanced Photon Source)

Dataset IDP01143-3.### details

Number of frames 300 (1 - 300)
Distance [mm] 240.0
Oscillation width [°] 0.60
Wavelength [nm] 0.97856
Experiment Date 2011-02-17
Equipment 21-ID-G at APS (Advanced Photon Source)

Dataset IDP01143-3k.### details

Number of frames 300 (1 - 300)
Distance [mm] 240.0
Oscillation width [°] 0.60
Wavelength [nm] 0.97856
Experiment Date 2011-02-17
Equipment 21-ID-G at APS (Advanced Photon Source)
