Diffraction project datasets IDP01131_3ihs

  • Method: SAD
  • Resolution: 1.15 Å
  • Space group: P 31 2 1
Download all images (4.8 GB)

PDB website for 3IHS

doi:10.18430/M33IHS

Project details

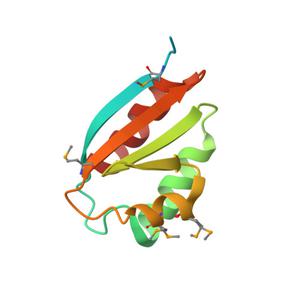

Title Crystal Structure of a Phosphocarrier Protein HPr from Bacillus anthracis str. Ames
Authors Brunzelle, J.S., Anderson, S.M., Wawrzak, Z., Skarina, T., Onopriyenko, O., Savchenko, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID)
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 40.84 x 40.84 x 139.37
Unit cell angles [°] 90.0, 90.0, 120.0

Dataset idl1131-2.### details

Number of frames 360 (1 - 360)
Distance [mm] 100.0
Oscillation width [°] 0.30
Wavelength [Å] 1.09721
Experiment Date 2009-03-21
Equipment 21-ID-D at APS (Advanced Photon Source)

Dataset idp1131_N1_A.### details

Number of frames 360 (1 - 360)
Distance [mm] 280.0
Oscillation width [°] 0.50
Wavelength [Å] 0.97856
Experiment Date 2009-03-14
Equipment 21-ID-D at APS (Advanced Photon Source)
