Diffraction project datasets IDP01047_6DB1
- Resolution: 2.0 Å
- Space group: P 63
Uniprot website for Q8ZM14
PDB website for 6DB1
PDB validation report for 6DB1
doi:10.18430/m36db1
Project details

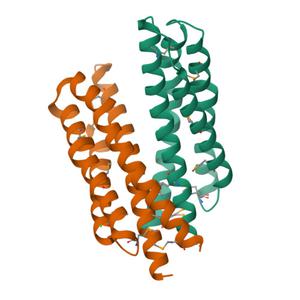

| Title | 2.0 Angstrom Resolution Crystal Structure of N-Terminal Ligand-Binding Domain of Putative Methyl-Accepting Chemotaxis Protein from Salmonella enterica |
| Authors | Minasov, G., Shuvalova, L., Dubrovska, I., Kiryukhina, O., Grimshaw, S., Kwon, K., Anderson, W.F., Satchell, K.J.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.22 / 0.26 |
| Unit cell edges [Å] | 89.23 x 89.23 x 65.89 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

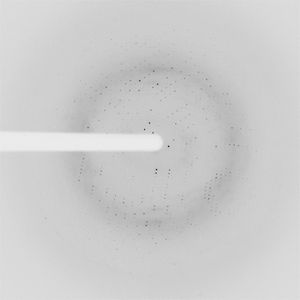

Dataset idp010474sm-cut-b_1_3_1.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | -10.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2016-10-27 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
