Diffraction project datasets IDP00995_3h02
- Method: SAD
- Resolution: 2.15 Å
- Space group: P 21 21 21
PDB website for 3H02
PDB validation report for 3H02
doi:10.18430/m33h02
Project details

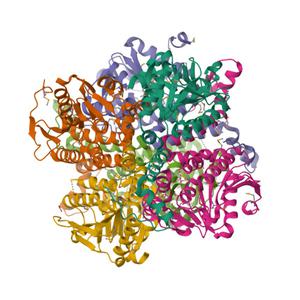

| Title | 2.15 Angstrom Resolution Crystal Structure of Naphthoate Synthase from Salmonella typhimurium. |
| Authors | Minasov, G., Wawrzak, Z., Skarina, T., Onopriyenko, O., Peterson, S.N., Savchenko, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID), Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.22 |
| Unit cell edges [Å] | 75.90 x 132.82 x 151.79 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset stm595-3_A.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 260.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 100.0 |
| Wavelength [Å] | 0.97925 |
| Experiment Date | 2009-02-08 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
Dataset stm595-3_B.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 260.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 280.0 |
| Wavelength [Å] | 0.97925 |
| Experiment Date | 2009-02-08 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
