Diffraction project datasets IDP00923_3hzn

  • Method: SAD
  • Resolution: 2.4 Å
  • Space group: C 1 2 1
Download all images (5.2 GB)

PDB website for 3HZN

doi:10.18430/M33HZN

Project details

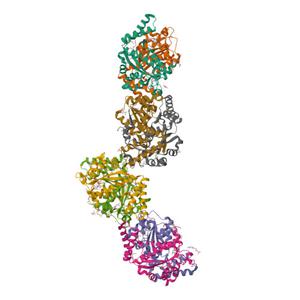

Title Structure of the Salmonella typhimurium nfnB dihydropteridine reductase
Authors Anderson, S.M., Wawrzak, Z., Onopriyenko, O., Skarina, T., Anderson, W.F., Savchenko, A., Center for Structural Genomics of Infectious Diseases (CSGID)
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 280.34 x 96.76 x 131.84
Unit cell angles [°] 90.0, 90.4, 90.0

Dataset stm578-1_1_2_A.### details

Number of frames 200 (1 - 200)
Distance [mm] 270.0
Oscillation width [°] 0.50
Phi [°] 100.0
Wavelength [nm] 0.97872
Experiment Date 2009-02-27
Equipment 21-ID-G at APS (Advanced Photon Source)

Dataset stm578-1_1_2_B.### details

Number of frames 200 (1 - 200)
Distance [mm] 270.0
Oscillation width [°] 0.50
Phi [°] 280.0
Wavelength [nm] 0.97872
Experiment Date 2009-02-27
Equipment 21-ID-G at APS (Advanced Photon Source)

Dataset stm578-1_1_3_A.### details

Number of frames 200 (1 - 200)
Distance [mm] 270.0
Oscillation width [°] 0.50
Phi [°] 200.0
Wavelength [nm] 0.97872
Experiment Date 2009-02-27
Equipment 21-ID-G at APS (Advanced Photon Source)

Dataset stm578-1_1_3_B.### details

Number of frames 200 (1 - 200)
Distance [mm] 270.0
Phi [°] -1.0
Wavelength [nm] 0.97872
Experiment Date 2009-02-27
Equipment 21-ID-G at APS (Advanced Photon Source)

Dataset stm578-1_1_A.### details

Number of frames 220 (1 - 220)
Distance [mm] 270.0
Oscillation width [°] 0.50
Wavelength [nm] 0.97872
Experiment Date 2009-02-27
Equipment 21-ID-G at APS (Advanced Photon Source)

Dataset stm578-1_1_B.### details

Number of frames 220 (1 - 220)
Distance [mm] 270.0
Oscillation width [°] 0.50
Phi [°] 180.0
Wavelength [nm] 0.97872
Experiment Date 2009-02-27
Equipment 21-ID-G at APS (Advanced Photon Source)
