Diffraction project datasets IDP00816_5CXD
- Resolution: 1.75 Å
- Space group: I 4
Uniprot website for Q5HED0
PDB website for 5CXD
PDB validation report for 5CXD
doi:10.18430/m35cxd
Project details
| Title | 1.75 Angstrom resolution crystal structure of the apo-form acyl-carrier-protein synthase (AcpS) (acpS; purification tag off) from Staphylococcus aureus subsp. aureus COL in the I4 space group |
| Authors | Halavaty, A.S., Minasov, G., Papazisi, L., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.20 |
| Unit cell edges [Å] | 103.12 x 103.12 x 71.19 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

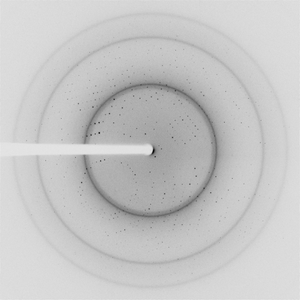

Dataset 816mixd-a.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 65.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2015-06-29 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
