Diffraction project datasets IDP00794_5TRO

Project details

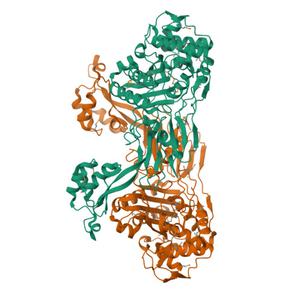

Title 1.8 Angstrom Resolution Crystal Structure of Dimerization and Transpeptidase domains (residues 39-608) of Penicillin-Binding Protein 1 from Staphylococcus aureus.
Authors Minasov, G., Shuvalova, L., Kiryukhina, O., Dubrovska, I., Grimshaw, S., Kwon, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID)
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 178.84 x 72.20 x 86.36
Unit cell angles [°] 90.0, 103.2, 90.0

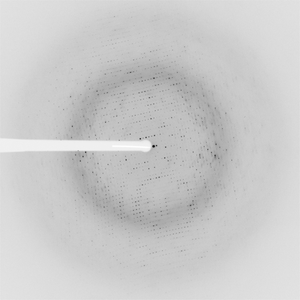

Dataset idp00794-5sm-cut-a_1_2_10.### details

Number of frames 600 (1 - 600)
Distance [mm] 250.0
Oscillation width [°] 0.60
Phi [°] 90.0
Wavelength [nm] 0.97872
Experiment Date 2016-10-20
Equipment 21-ID-F at APS (Advanced Photon Source)
