Diffraction project datasets IDP00699_4QN2
- Resolution: 2.6 Å
- Space group: P 1 21 1
PDB website for 4QN2
doi:10.18430/m34qn2
Project details

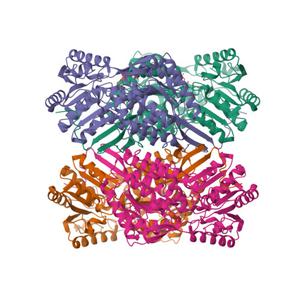

| Title | 2.6 Angstrom resolution crystal structure of betaine aldehyde dehydrogenase (betB) G234S mutant from Staphylococcus aureus (IDP00699) in complex with NAD+ and BME-free Cys289 |
| Authors | Halavaty, A.S., Minasov, G., Chen, C., Joo, J.C., Yakunin, A.F., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 88.59 x 168.37 x 144.52 |
| Unit cell angles [°] | 90.0, 104.9, 90.0 |

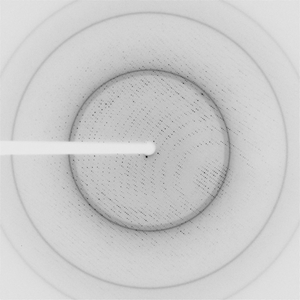

Dataset idp699g234sb.### details
| Number of frames | 330 (1 - 330) |
| Distance [mm] | 220.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 20.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2013-10-14 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
