Diffraction project datasets IDP00323_5UJS
- Resolution: 2.46 Å
- Space group: C 1 2 1
Uniprot website for Q9PP65
PDB website for 5UJS
PDB validation report for 5UJS
doi:10.18430/m35ujs
Project details

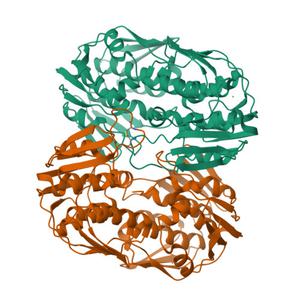

| Title | 2.45 Angstrom Resolution Crystal Structure of UDP-N-acetylglucosamine 1-carboxyvinyltransferase from Campylobacter jejuni. |
| Authors | Minasov, G., Shuvalova, L., Dubrovska, I., Winsor, J., Stam, J., Kwon, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.22 / 0.27 |
| Unit cell edges [Å] | 130.26 x 86.02 x 80.42 |
| Unit cell angles [°] | 90.0, 109.3, 90.0 |

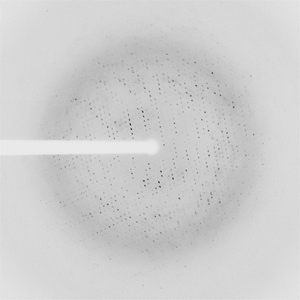

Dataset idp00323v-g.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 70.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2009-06-18 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
