Diffraction project datasets IDP00274_5IKM
- Resolution: 1.9 Å
- Space group: I 2 2 2
Uniprot website for I6XG39
PDB website for 5IKM
PDB validation report for 5IKM
doi:10.18430/m35ikm
Project details

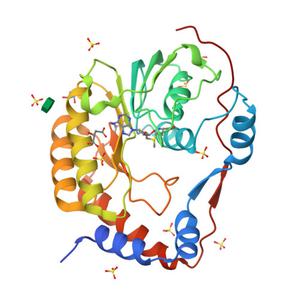

| Title | 1.9 Angstrom Crystal Structure of NS5 Methyl Transferase from Dengue Virus 1 in Complex with S-Adenosylmethionine and Beta-D-Fructopyranose. |
| Authors | Minasov, G., Shuvalova, L., Winsor, J., Dubrovska, I., Flores, K., Shatsman, S., Kwon, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases, Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.15 / 0.18 |
| Unit cell edges [Å] | 58.38 x 86.23 x 144.31 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

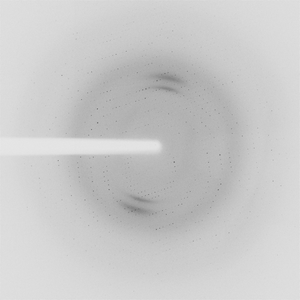

Dataset idp95072sm-a.### details
| Number of frames | 500 (1 - 500) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 160.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2014-12-12 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |

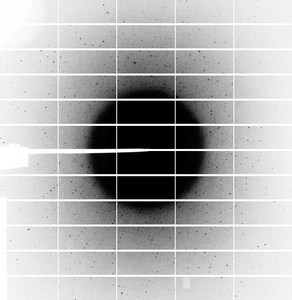

Dataset w3_05_#####.cbf details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 148.2 |
| Oscillation width [°] | 0.20 |
| Omega [°] | -180.0 |
| Wavelength [Å] | 0.97918 |
| Experiment Date | 2018-10-14 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
