Diffraction project datasets IDP00173_5UH0
- Resolution: 1.95 Å
- Space group: P 21 21 21
Uniprot website for Q74SQ6
PDB website for 5UH0
PDB validation report for 5UH0
doi:10.18430/m35uh0
Project details
| Title | 1.95 Angstrom Resolution Crystal Structure of Fragment (35-274) of Membrane-bound Lytic Murein Transglycosylase F from Yersinia pestis. |
| Authors | Minasov, G., Shuvalova, L., Flores, K., Kiryukhina, O., Grimshaw, S., Kwon, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.21 / 0.27 |
| Unit cell edges [Å] | 64.09 x 66.51 x 96.43 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

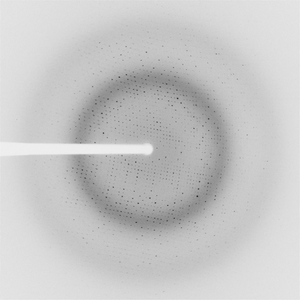

Dataset idp00173-8sm-cut-b_2_2_2.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 200.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2016-04-25 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
