Diffraction project datasets IDP00118_3mga
- Method: SAD
- Resolution: 2.4 Å
- Space group: P 1 21 1
PDB website for 3MGA
doi:10.18430/M33MGA
Project details

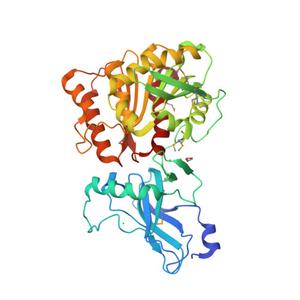

| Title | 2.4 Angstrom Crystal Structure of Ferric Enterobactin Esterase (fes) from Salmonella typhimurium |
| Authors | Minasov, G., Wawrzak, Z., Skarina, T., Onopriyenko, O., Papazisi, L., Savchenko, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.19 / 0.25 |
| Unit cell edges [Å] | 52.49 x 125.55 x 66.61 |
| Unit cell angles [°] | 90.0, 91.4, 90.0 |
Dataset idp00118-1.### details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.75 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2010-02-05 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
Dataset idp00118-1_2.### details
| Number of frames | 110 (1 - 110) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.75 |
| Phi [°] | 120.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2010-02-05 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
