Diffraction project datasets IDP00102_5f64
- Resolution: 2.71 Å
- Space group: C 1 2 1
PDB website for 5F64
PDB validation report for 5F64
doi:10.18430/m35f64
Project details

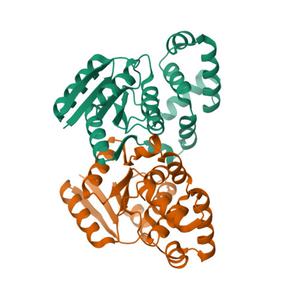

| Title | Putative positive transcription regulator (sensor EvgS) from Shigella flexneri |
| Authors | Nocek, B., Osipiuk, J., Mulligan, R., Gu, M., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 168.49 x 110.87 x 110.77 |
| Unit cell angles [°] | 90.0, 126.7, 90.0 |
Dataset xtal4-peg2-4c-x1.####.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 327.3 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -120.0 |
| Kappa / Chi [°] | -0.0001 |
| Phi [°] | -0.007 |
| Wavelength [Å] | 0.97857 |
| Experiment Date | 2009-06-20 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
