Diffraction project datasets IDP00076_3nx4
- Method: SAD
- Resolution: 1.9 Å
- Space group: C 1 2 1
PDB website for 3NX4
PDB validation report for 3NX4
doi:10.18430/m33nx4
Project details

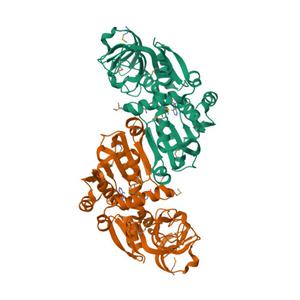

| Title | Crystal structure of the yhdH oxidoreductase from Salmonella enterica in complex with NADP |
| Authors | Anderson, S.M., Wawrzak, Z., Peterson, S., Onopriyenko, O., Skarina, T., Anderson, W.F., Savchenko, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.15 / 0.19 |
| Unit cell edges [Å] | 103.22 x 122.36 x 64.91 |
| Unit cell angles [°] | 90.0, 121.1, 90.0 |
Dataset idp00076-2_2_A.### details
| Number of frames | 100 (1 - 100) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.75 |
| Phi [°] | 110.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2010-04-25 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
Dataset idp00076-2_2_B.### details
| Number of frames | 100 (1 - 100) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.75 |
| Phi [°] | 290.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2010-04-25 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
Dataset idp00076-2_A.### details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.75 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2010-04-25 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
Dataset idp00076-2_B.### details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.75 |
| Phi [°] | 180.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2010-04-25 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
