Diffraction project datasets IDP00038_3tyx
- Resolution: 2.04 Å
- Space group: P 43
PDB website for 3TYX
doi:10.18430/M33TYX
Project details

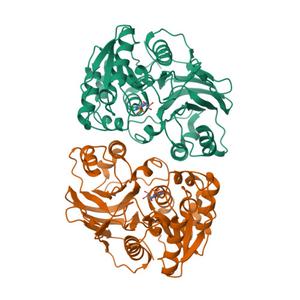

| Title | Crystal structure of the F177S mutant of mycrocine immunity protein (MccF) with AMP |
| Authors | Nocek, B., Tikhonov, A., Babnigg, G., Gu, M., Zhou, M., Makarova, K.S., Vondenhoff, G., Aerschot, A.V., Kwon, K., Anderson, W.F., Severinov, K., Joachimiak, A. |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 118.23 x 118.23 x 54.84 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset F177S-x1.####.img details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 309.7 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -85.0 |
| Kappa / Chi [°] | -0.0001 |
| Phi [°] | -0.0037 |
| Wavelength [Å] | 0.97934 |
| Experiment Date | 2011-03-21 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
