Diffraction project datasets HosaA_19747_a_KW2_6vel
- Resolution: 2.65 Å
- Space group: P 31 2 1
PDB website for 6VEL
PDB validation report for 6VEL
doi:10.18430/m36vel
Project details

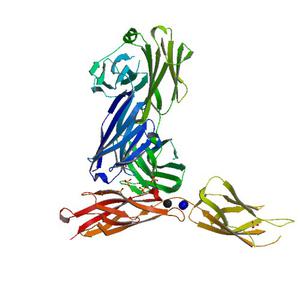

| Title | Crystal Structure of Human E-cadherin bound by mouse monoclonal antibody 66E8Fab |
| Authors | Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.18 / 0.23 |
| Unit cell edges [Å] | 142.17 x 142.17 x 90.32 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

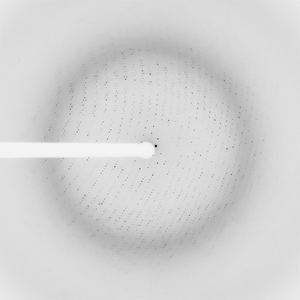

Dataset ckt8-9.### details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 120.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2019-07-18 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
