Diffraction project datasets HP1666A_2rb7

  • Method: MAD
  • Resolution: 1.6 Å
  • Space group: P 1 21 1
Download all images (7.8 GB)

PDB website for 2RB7
PDB validation report for 2RB7

doi:10.18430/M32RB7

Project details

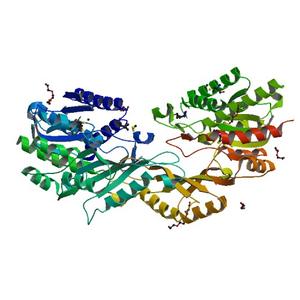

Title Crystal structure of co-catalytic metallopeptidase (YP_387682.1) from Desulfovibrio desulfuricans G20 at 1.60 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 53.85 x 82.19 x 89.34
Unit cell angles [°] 90.0, 91.4, 90.0

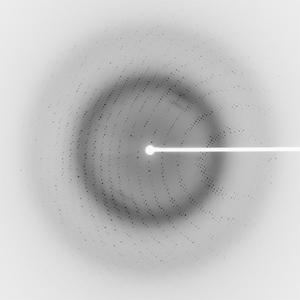

Dataset 52221_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 234.0
Wavelength [Å] 0.97926
Experiment Date 2007-06-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

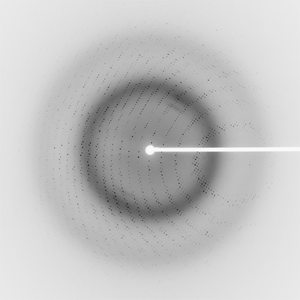

Dataset 52221_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 234.0
Wavelength [Å] 0.91837
Experiment Date 2007-06-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

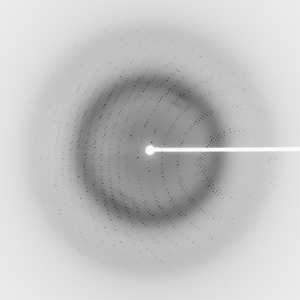

Dataset 52221_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 234.0
Wavelength [Å] 0.97901
Experiment Date 2007-06-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
