Diffraction project datasets HP10633A_4fuu
Project details
| Title |

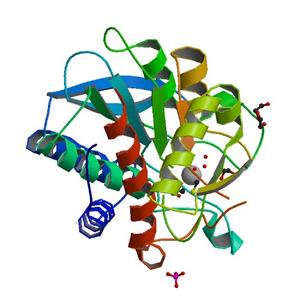

Crystal structure of a leucine aminopeptidase precursor (BT_2548) from Bacteroides thetaiotaomicron VPI-5482 at 1.30 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.12 / 0.16 |
| Unit cell edges [Å] |
40.24 x
41.58 x
48.53
|
| Unit cell angles [°] |
65.5,
80.4,
78.7
|
Dataset 171206_1_E1_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
120.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
287.0 |
| Wavelength [Å] |
0.97960 |
| Experiment Date |
2011-10-16 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

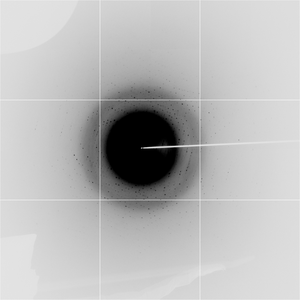

Dataset 171206_1_E2_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
120.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
287.0 |
| Wavelength [Å] |
0.95370 |
| Experiment Date |
2011-10-16 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

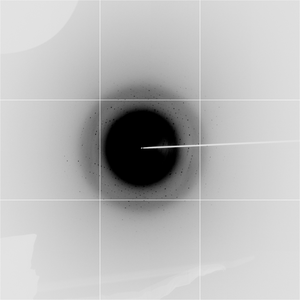

Dataset 171206_2_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
120.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
287.0 |
| Wavelength [Å] |
0.97930 |
| Experiment Date |
2011-10-16 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|
