Diffraction project datasets HP10623B_3k9t

  • Method: MAD
  • Resolution: 2.37 Å
  • Space group: H 3 2
Download all images (4.4 GB)

PDB website for 3K9T
PDB validation report for 3K9T

doi:10.18430/M33K9T

Project details

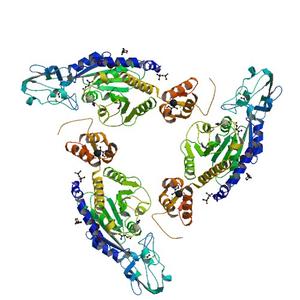

Title Crystal structure of putative peptidase (NP_348812.1) from CLOSTRIDIUM ACETOBUTYLICUM at 2.37 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 153.78 x 153.78 x 168.38
Unit cell angles [°] 90.0, 90.0, 120.0

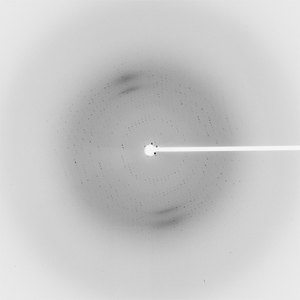

Dataset 131435_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 274.0
Wavelength [Å] 0.97925
Experiment Date 2009-07-30
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

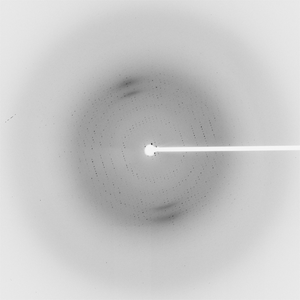

Dataset 131435_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 274.0
Wavelength [Å] 0.91837
Experiment Date 2009-07-30
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

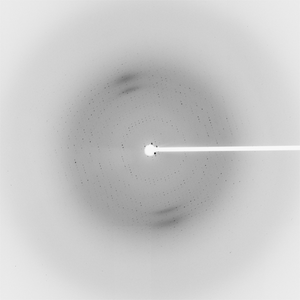

Dataset 131435_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 274.0
Wavelength [Å] 0.97911
Experiment Date 2009-07-30
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
