Diffraction project datasets HP10622L_3na6
Project details
| Title |

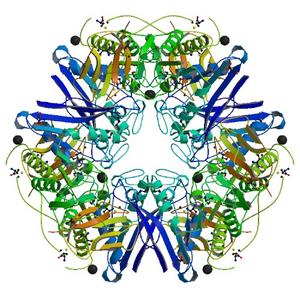

Crystal structure of a succinylglutamate desuccinylase (TM1040_2694) from SILICIBACTER SP. TM1040 at 2.00 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.16 / 0.20 |
| Unit cell edges [Å] |
99.77 x
99.77 x
137.18
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

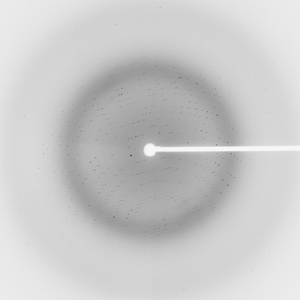

Dataset 149539_1_E1_####.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
84.0 |
| Wavelength [Å] |
0.97922 |
| Experiment Date |
2010-03-11 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

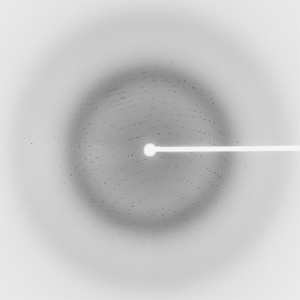

Dataset 149539_1_E2_####.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
84.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2010-03-11 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

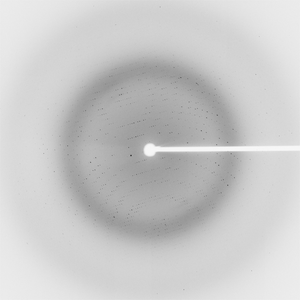

Dataset 149539_1_E3_####.mccd details
| Number of frames |
36 (1 - 36) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
84.0 |
| Wavelength [Å] |
0.97922 |
| Experiment Date |
2010-03-11 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

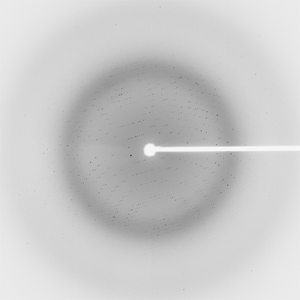

Dataset 149539_2_####.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
84.0 |
| Wavelength [Å] |
0.97905 |
| Experiment Date |
2010-03-11 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
